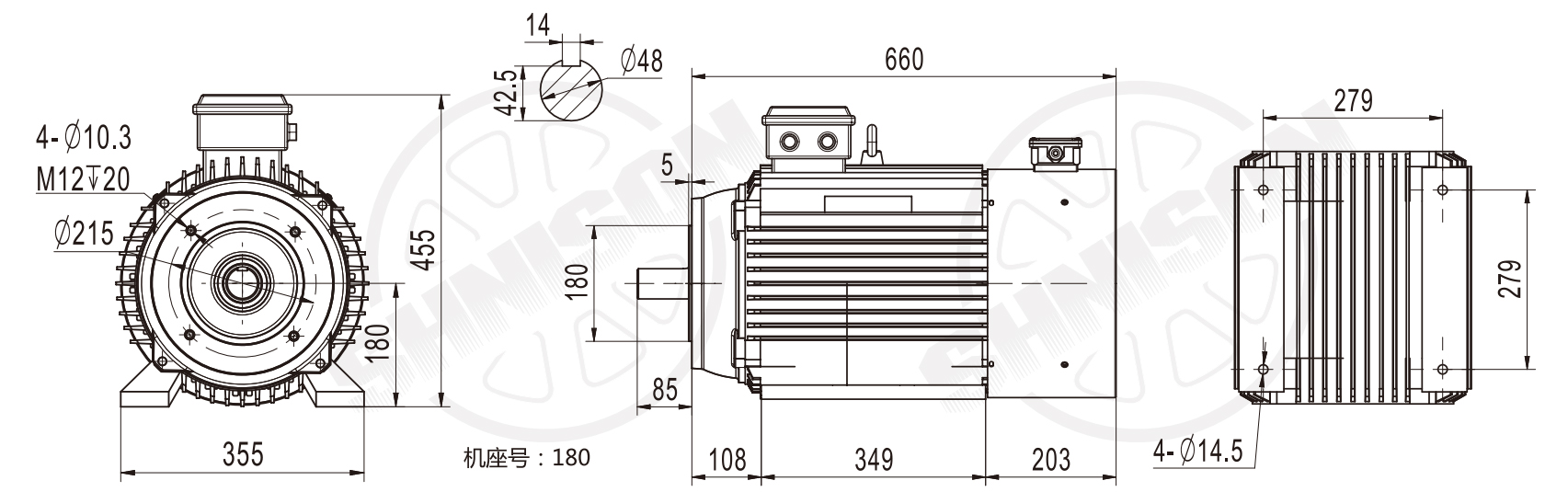

高可靠性变频 180机座 变频 外轴 B34法兰安装电机是一款面向严苛工业工况的驱动设备，其设计充分考虑变频运行的特殊要求。通过优化的电磁设计与坚固的结构配置，电机可在复杂环境中与变频器长期稳定协同运行，保障持续可靠输出。
电机内部采用高等级绝缘材料与耐磨轴承，并在制造过程中执行严格的质量管控，降低运行故障风险。该设计不仅延长电机使用寿命，也能有效减少因停机带来的维护成本。同时，电机具备良好的防护能力与较强的环境适应性，可抵御外部因素影响，确保长期稳定运行。
该电机兼容市面多种主流变频器，便于系统集成与应用配置更灵活。外轴结构结合 B34法兰安装方式，使安装与传动系统连接更高效，可轻松满足多样化工业设备的应用需求。
产品参数:
|
产品编号 |
电机结构形式 |
额定输出功率 |
转速 |
效率 |
功率因素 |
额定转矩 |
噪音 |
恒转矩频率范围 |
恒功率(恒输出)频率范围 |
|
|
KW |
A |
RPM |
Eff.% |
PF |
N.m |
dB(A) |
||||
|
3ZABP1804185N-WSF |
YVF180M-4 |
18.5 |
26.3 |
1470 |
91.2 |
0.85 |
120.0 |
83 |
5-50 |
50-100 |
|
3ZABP1804220N-WSF |
YVF180L-4 |
22 |
42.9 |
1465 |
91.6 |
0.85 |
143.0 |
83 |
||
|
3ZABP1806150N-WSF |
YVF180L-6 |
15 |
31.8 |
980 |
89.7 |
0.80 |
146.0 |
82 |
||
|
3ZABP1806110N-WSF |
YVF180L-8 |
11 |
25.0 |
725 |
87.8 |
0.76 |
145 |
82 |
||
|
3ZABP2004300N-WSF |
YVF200L-4 |
30 |
58.1 |
1475 |
92.3 |
0.85 |
194.0 |
85 |
||
|
3ZABP2254370N-WSF |
YVF225S-4 |
37 |
70.5 |
1480 |
92.7 |
0.86 |
239.0 |
88 |
||
|
3ZABP2254450N-WSF |
YVF225M-4 |
45 |
85.4 |
1480 |
93.1 |
0.86 |
290.0 |
88 |
||
|
Part. |
Motor C. shape |
Rated output Pot. |
Speed Velocità |
efficiency |
Power |
Rated |
noise |
Constant Torque |
Constant Output |
|
|
KW |
A |
RPM |
Eff.% |
PF |
N.m |
dB(A) |
||||
|
3ZABP2504550N-WSF |
YVF250M-4 |
55 |
104 |
1485 |
93.5 |
0.86 |
354.0 |
92 |
5-50
|
50-100
|
|
3ZABP2804750N-WSF |
YVF280S-4 |
75 |
139 |
1490 |
94.0 |
0.87 |
481.0 |
94 |
||
|
3ZABP2804900N-WSF |
YVF280M-4 |
90 |
165 |
1485 |
94.2 |
0.88 |
579.0 |
94 |
||
|
3ZABP2006185N-WSF |
YF200L1-6 |
18.5 |
38.9 |
980 |
90.4 |
0.80 |
180.0 |
84 |
||
|
3ZABP2006220N-WSF |
YVF200L2-6 |
22 |
45.4 |
980 |
90.9 |
0.81 |
214.0 |
84 |
||
|
3ZABP2256300N-WSF |
YVF225M-6 |
30 |
60.6 |
985 |
91.7 |
0.82 |
291.0 |
86 |
||
|
3ZABP2506370N-WSF |
YVF250M-6 |
37 |
73.5 |
985 |
92.2 |
0.83 |
359.0 |
90 |
||
|
3ZABP2806450H-WSF |
YVF280M-6 |
45 |
86.8 |
990 |
92.7 |
0.85 |
434.0 |
92 |
||
|
3ZABP2806550H-WSF |
YVF280M-6 |
55 |
104 |
990 |
93.1 |
0.86 |
531.0 |
92 |
||
|
3ZABP3156750H WSM |
YVF280M-6 |
75 |
145 |
990 |
93.7 |
0.84 |
723.0 |
94 |
||
|
3ZABP2258185H-WSF |
YVF280M-6 |
18.5 |
40 |
735 |
90.2 |
0.78 |
240 |
86 |
||
|
3ZABP2258220H-WSF |
YVF280M-6 |
22 |
47.4 |
735 |
90.5 |
0.78 |
286 |
86 |
||
|
3ZABP2508300N WSF |
YVF280M-6 |
30 |
63.4 |
735 |
91.0 |
0.79 |
390 |
90 |
||
|
3ZABP2808370H WSF |
YVF280M-6 |
37 |
77.8 |
740 |
91.5 |
0.79 |
478 |
92 |
||
|
3ZABP2808450H WSF |
YVF280M-6 |
45 |
93.9 |
740 |
92.2 |
0.79 |
581 |
92 |
||
|
3ZABP31585501 W5M |
YVF280M-6 |
55 |
111 |
740 |
93.1 |
0.81 |
710 |
94 |
||
